Bremsetester med elektromagnetisk motorbremse
Overholder alle gældende retningslinjer (RiLi 10/2011 HU § 29 StVZO) med ASA livestream

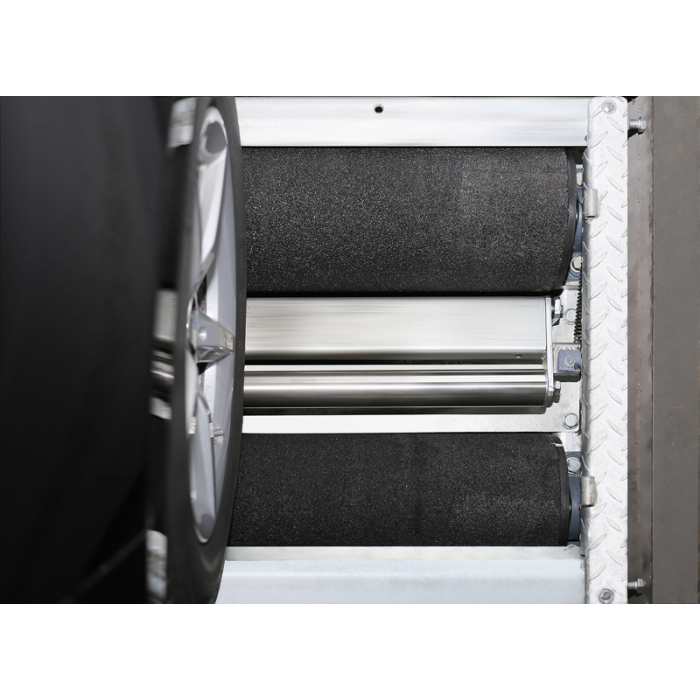

- Hot-dip galvanized roller set
- Low-wear corundum rollers 700mm
- Adjustment screws for height adjustment
- Wear-free, electronic measuring system
- All car brake testers are prepared for upgrading the 4-point-weighing system
- Car brake tester fits in all common pits
- All car brake testers can be extended to test lane
- Compact control box
- Speed sensors
- Manual / automatic mode, delayed automatic switch-on
- Start-up monitoring, slip shut-off and shutdown after driving out from the brake teser
- Optimized test procedure also suitable for electronic parking brakes
- Electromagnetic engine brake as drive out support
- Powerful 4kW motors (braking power: >8kN, test load at 50% deceleration: 4,0t)
- Test speed 5.1km/h
- Four-wheel drive kit, ideal for 4x4 vehicles
- Lockable main switch
- ASA-Livestream
- Wall mounting for control box
- Fast delivery and installation
Optional Accessories:
- Assembly frame
- Assembly case
- 4x4 manual & automatic
- Remote control
- Pedal force sensor (radio version)
- Pedal force sensor (cable version)
- 4-point-weighing system
- PC connection with PC visualization (standard car Software)
- Swiveling roller cover plates (set)
- Motorcycle cover plate
- Post for analog display or control box
- Moveable PC trolley (empty) for customer PC
- Universal mounting kit - height compensation for pits up to 30mm
- Large easy-to-read analog display with 2x255mm (300 °) clocks
- Analog display with 16-digit LED display
- Swivel arm for analog display
Technical data
| Test width min. |
800 mm |
| Coefficient of friction dry/wet |
> 0.7 / > 0.6 |
| Fuse protection |
3 x 32 A slow-blow |
| Motor power |
2 x 4,0 kW |
| Test width max. |
2200 mm |
| Power supply |
3 x 400 V, N, PE 50 Hz |
| Brakeable performance max. |
10,0 kN |
| Test speed |
5,1 km/h |
| Weight |
430 kg |
| Max. drive-over load |
4000 kg |
| Roller elevation |
25 mm |
| Height Rollerset |
240 mm |
| Width Rollerset |
2320 mm |
| Roller length |
700 mm |
| Roller diameter |
205 mm |
| Length Rollerset |
660 mm |
| Display cabinet Measuring range |
0 - 8 kN |
| Brake tester Roller set |
Hot galvanized |
| Brake tester Test weight per axle (at 50% braking ratio) |
4000 kg
|
Dansk Maskin Import leverer kvalitets bremse testere fra Cosber. Vi leverer bremseprøvestand i en fantastisk god kvalitet med alle de funktioner som hører med til godt bremsetest udstyr. Professionel bremsetest løsning til ethvert behov.
